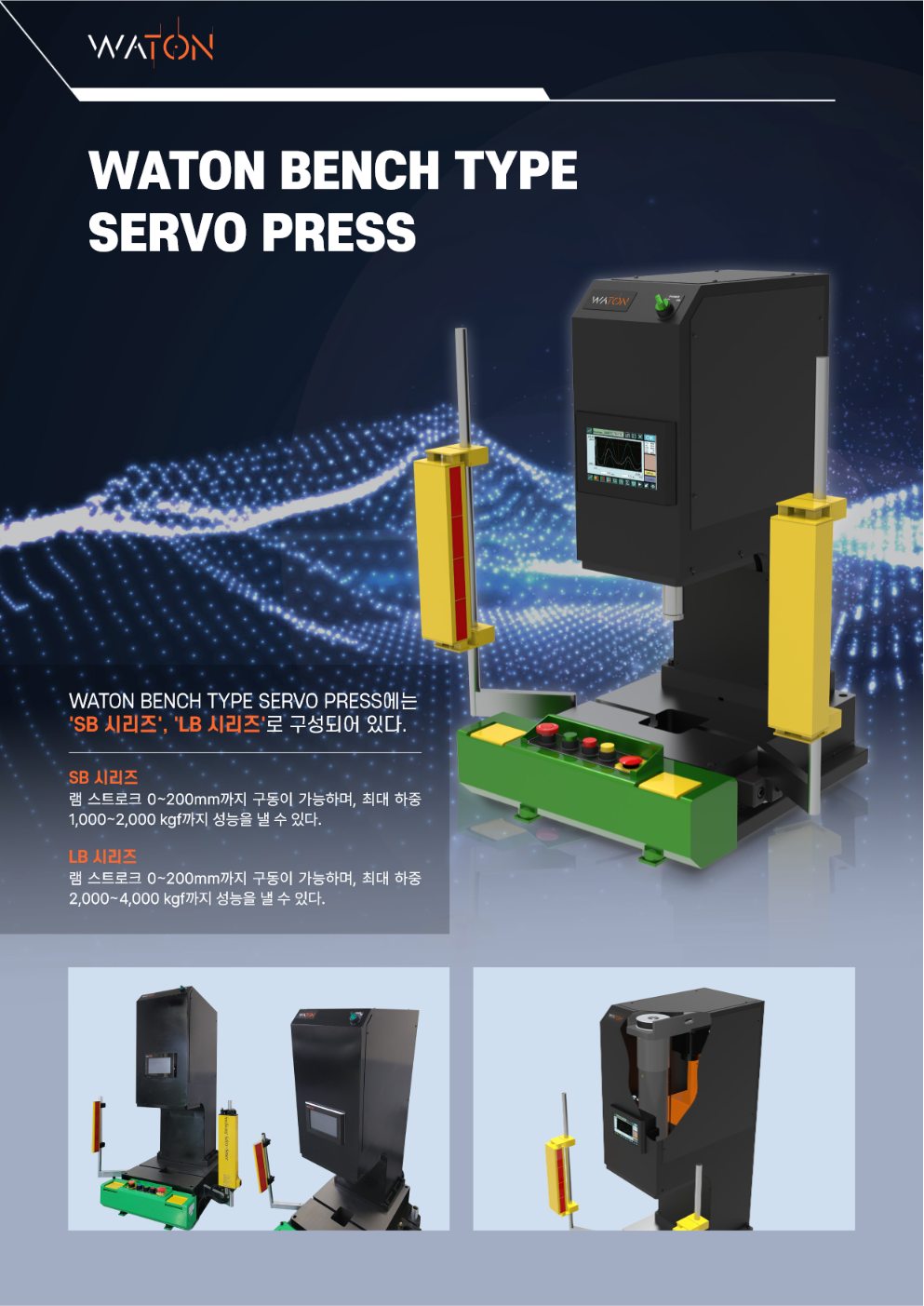

        SVP Serise SVP-SB-200

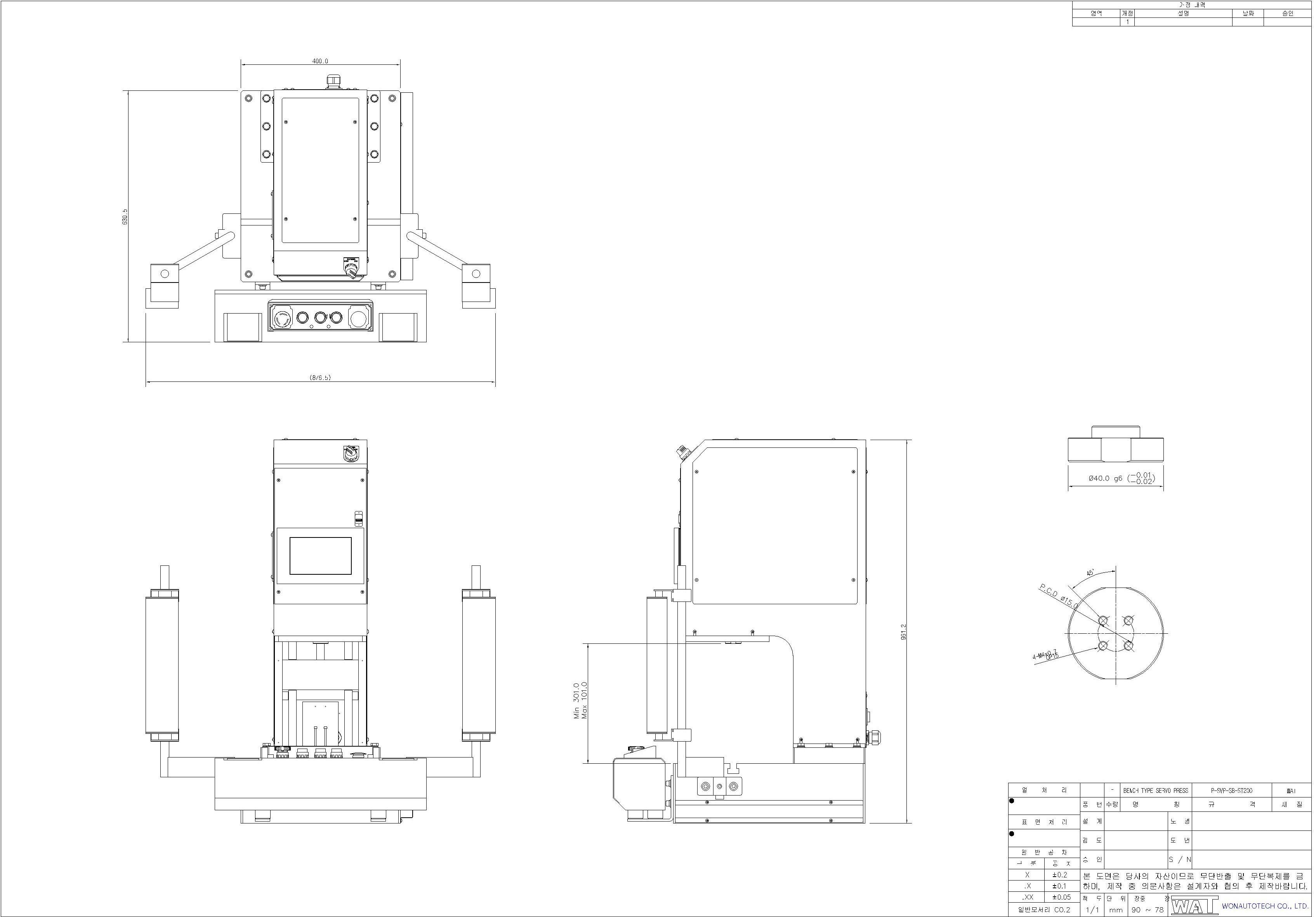

        This SVP-SB-200 offers a ram stroke range of 0 to 200 mm and supports loads of up to 2,100 kgf. edit_documentInquiry download2D Draw Download download3D Draw Download
        Ram Stroke (mm) 0 ~ 200
        Rated Output (kW) 1
        Max. Load (kgf) 2,100
        Max. Feed Speed (mm/s) 100 ~ 125
        Repeatability (mm) ±0.01
        Holding Time -
        Input Power 220V 3-phase
        Weight (kg) Approx. 350
